Technical
Specifications
MUSKAAN’S Servo Stabilizer are
available in wide range & various models
according to customer’s requirement for
Balanced / Unbalanced supplies with
following specifications:
|
|
Input Voltage |
360-460 V |
360-460 V |
320-480 V |
300-480 V |
280-500 V |
|
Efficiency (Approx.) |
99.5% |
99.3% |
99% |
98.8% |
98.7% |
|
Output Voltage |
400
V ±
1% 3Phase, 50 Hz* |
|
|
. |
. |
|
Cooling |
Naturally Oil Cooled |
|
|
. |
. |
|
Type |
Indoor / Outdoor |
Response Time: |
Instantaneous |
|
. |
|
Temperature Rise ( Max.) |
30o
C above ambient |
Accuracy: |
±
1% |
. |
. |
|
Mounting |
On
Uni-directional Wheels |
. |
. |
. |
. |
|
Wave form distortion |
Nil |
. |
. |
. |
. |
|
Duty Cycle |
100% Continuous |
. |
. |
. |
. |
|
*Non standard ranges are also in our scope
of supply. Output voltage of 380 - 415 volts
is also in scope of supply.
|
|
Comparison
Between Muskaan's make & Conventional make

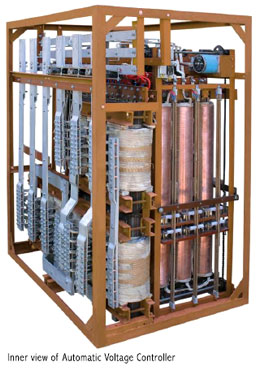

Automatic Voltage Controller
|
|

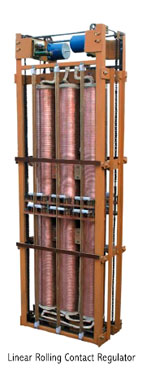

Muskaan's make roller type regulator |
Conventional make with carbon brush
regulator |
|
- Power consumption is 0.5 to 1.5%
depending upon the model and input
voltage variation
- Suitable for continuous 100% duty
cycle

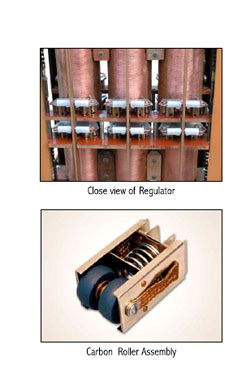

- The carbon (graphite) Roller rolls,
while moving on the coil track, so
contact Point of the roller goes on
changing which prolongs the life of the
rollers
- Life at full load is 15-20 years
- Negligible losses in full Buck /
Boost Condition
- Five years Unconditional Guarantee
|
- Power consumption is 2 to 7%
depending upon the
model and input voltage variation
- Suitable for only 50% to 60% duty
cycle
- Since the contact is by brush having
flat surface, wear & tear of the brush
is more and requires frequent
replacement
- Maximum life is 3-5 years at full
load
- Max. Losses in full Buck/Boost
condition
- Normal Guarantee/Warantee for one
year
|
|
|
Advantages |
|
|
- Power Saving ( Reduction in Power
Bills )
- Reduction in breakdown of electrical
/ electronic equipments
- Reduction in MDI
- Improvement in Power Factor (At
Higher Voltage)
- Uniform Quality / Lesser Tripping
- Improvement in quality of end
products
- Better Efficiency in Plant
- Unmeasurable Benefits
- Depreciation as per income tax act
(In India Only)
|
|
Payback
Period |
|
It has been assesed with long experience &
customer’s feedback that the payback period
of Automatic Voltage Controller is well
within 6-12 months depending upon the site
conditions. |
|
|
