Product Range

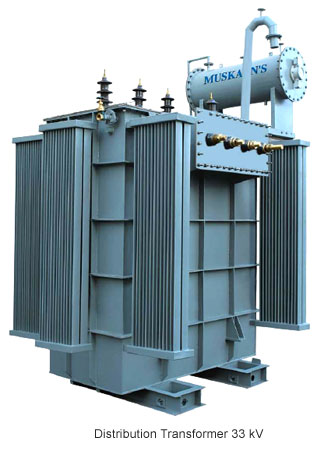

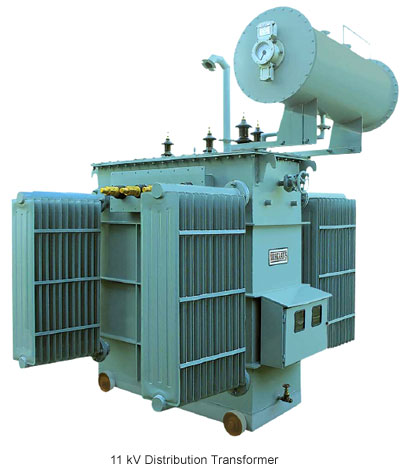

Distribution & Power Transformer:
* Upto 150 kVA Single Phase both 11 & 33 kV Class
* Upto 40 MVA, 66 kV Class
* Upto 20 MVA OLTC 33 kV Class


Applicable Standards:
IS, IEC, ANSI, JIS, BS, DIN, ETC.

TRANSFORMER OPTIONS
* Cooling Tubes / Radiators / Corrugated
Tanks
* Pole Mounted / Ground Mounted
* Free Breathing / Hermetically Sealed
* CSP / Non CSP
* Winding-Copper/Aluminium (Foil /
Rectangular Wire / Round Wire)
* Fittings and Accessories, Cable
Terminations etc. : as required


Standards
MUSKAAN’S transformers are designed and tested as per IS : 2026, BS - 171, IEC - 76 & IEC - 726.


Vector Group
Transformers will be connected as per vector group reference Dyn11. Other vector groups can be offered as per specific requirements


Terminal Arrangement
H. V. - Bare Bushings or Cable Box, L. V. - Bare Bushings or Cable Box. Disconnecting chambers can also be provided on both HV and LV Cable boxes.


Temperature Rise
MUSKAAN’S transformers are designed for a maximum temperature rise of 40 / 50 degree C of oil / winding. Lower temperature rise can be offered on request.
